Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. Copper fittings can last for decades when they are installed correctly. That makes them a cost-effective option for many plumbing projects.
In this article, we will explain how to identify fittings by both function and size. It also compares soldered joints with mechanical connections. You will learn how to source compatible parts through trusted suppliers like Installation Parts Supply. Our goal is to provide clear advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: Overview And Reasons To Choose Copper
Copper pipe fittings are a preferred choice for both residential and commercial plumbing. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. Below is an overview of why plumbers and contractors continue to choose copper for repairs and new construction.
Benefits of copper
Copper is known for its durability and malleability, allowing fittings like elbows and tees to be shaped easily without cracking. Its high heat tolerance makes it a strong choice for hot-water supply lines and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. It can be joined using solder, press systems, compression, or push-fit methods, providing flexibility in projects.
Longevity And Corrosion Resistance
Copper tubing can last between 70 to 80 years when installed correctly. As copper oxidizes, it forms a protective patina that helps limit deeper corrosion and improve service life. Quality material, proper fluxing, and clean joints are essential to prevent pinhole leaks and premature failure. Its service life can be extended even more through regular inspection and the use of properly matched fittings in supply lines and HVAC loops.
Applications Where Copper Outperforms Other Materials
Copper surpasses many alternatives in hot-water systems, refrigeration lines, and high-pressure applications. For HVAC and refrigeration systems, pipe 5 8 and copper tube 5/8 are often used in refrigerant circuits for dependable performance under heat and pressure. Compared to PVC or PEX, copper fittings can handle higher temperatures and maintain rigidity under stress. Against multilayer or composite pipes, copper is less susceptible to impact damage and has a proven track record in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Strength and Durability | Strong tensile performance and wear resistance | Hot-water supply, boiler loops |
| Temperature tolerance | Handles high temperatures without softening | Water heaters, HVAC lines |
| Corrosion behavior | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Connection methods | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Typical sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits and tight commercial runs |

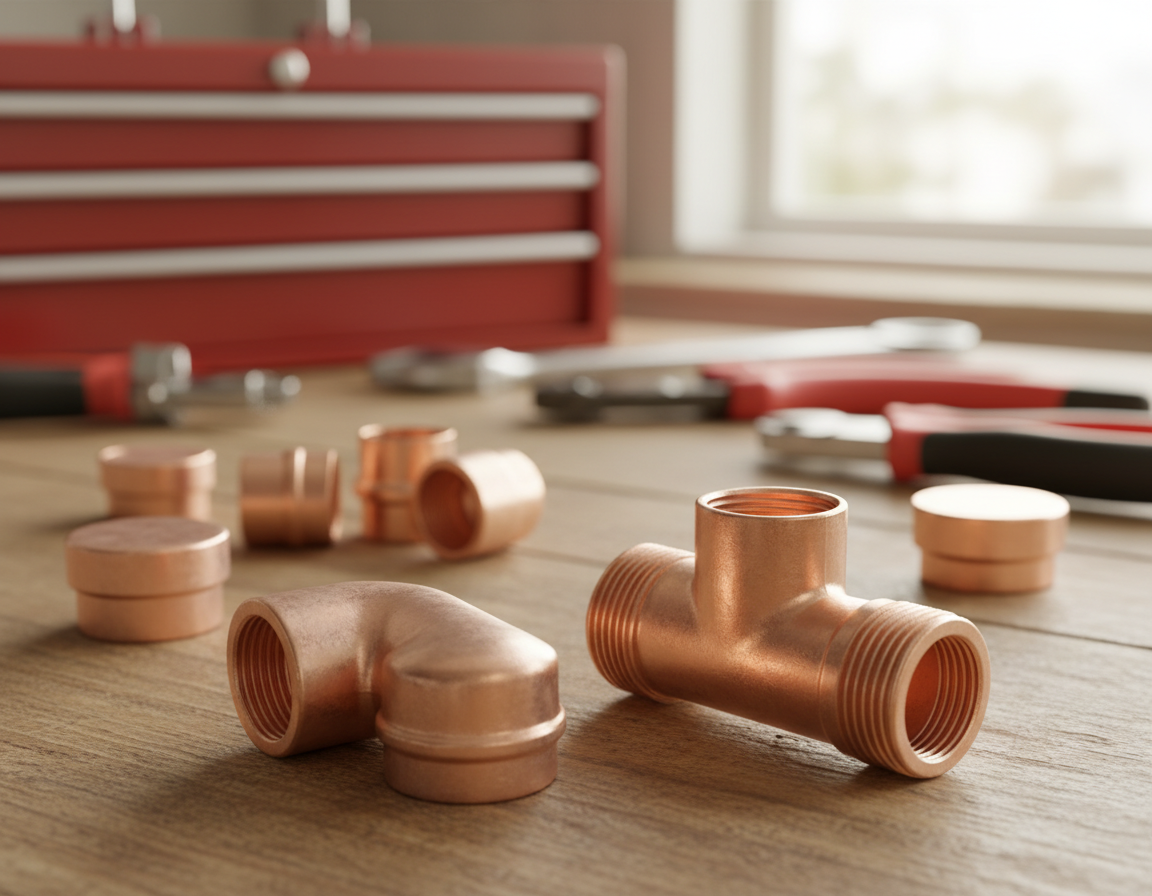

Common Types Of Copper Pipe Fittings For Supply Lines
A successful project depends in part on choosing the correct copper fittings. Here we cover important fittings used in water supply lines, including those for directional changes and service access. Remember to consider pipe size, material compatibility, and connection style when planning.
Elbows, Tees, And Crosses For Direction Changes And Branching
Elbows guide flow around corners and are available in 90°, 45°, and 22.5° configurations. They are especially useful when you need to route around obstacles or follow wall paths. For three-way connections, tees divide or combine flow and are often found in kitchens and bathrooms. Cross fittings connect four directions and are ideal where system lines meet.
These fittings are available in several styles, including sweat/soldered, press, and compression. Choose the connection style that matches your copper pipe connectors and the installer’s experience level.
Couplings, Adapters, And Unions For Joining And Service
Copper couplings connect two pipe lengths of the same diameter. Reducing couplings handle different sizes. Adapters transition between materials or thread types, such as copper-to-brass or copper-to-PEX.
For repairs and equipment service, unions allow sections to be disconnected quickly. They’re perfect for where a valve or fixture needs periodic removal. To prevent leaks, always ensure that unions and adapters match the pipe OD or nominal size.
Caps, Plugs, And Clean-Outs Used For Sealing And Access
Caps seal an end of a line, while plugs thread into fittings to seal branches. Both are often used during pressure testing and for temporary terminations. Clean-outs provide service access to drain lines for clearing blockages and maintenance.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Make sure the fitting size reference—nominal, OD, or ID—is correct, since this is especially important for 5 8 copper fittings and similar parts.
As you plan a project, make sure copper pipe connectors, couplings, adapters, and unions are compatible with the pipe type. This helps prevent fit problems and makes maintenance easier.
Copper Compression And Push-To-Connect Connections
Compression and push-to-connect fittings streamline copper plumbing, making it faster and safer in many scenarios. These fittings are especially useful when a torch is not practical or when a fast repair is required. Below, we’ll explore how each system functions, their appropriate applications, and essential installation tips for 5/8 copper tube projects.
How Compression Fittings Create A Seal
Compression fittings use a nut and a ferrule to create a seal. As the nut is tightened, the ferrule compresses against the tube and grips the copper. The result is a leak-resistant connection that does not require heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
They are effective on a range of sizes, including 5 8 copper pipe fittings. When installed correctly, they allow for disassembly, making them ideal for accessible valves and meter connections.
Fast Installations With Push-To-Connect Fittings
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. No solder, crimping, or special tools are required. Because of this simplicity, they are popular with DIYers and professionals working in tight spaces.
These fittings are suitable for common sizes like 5/8 copper tube. Many manufacturers publish pressure and temperature ratings for them. For reliable performance, it is essential to match the fitting to the tubing type and follow the manufacturer’s insertion-depth guidelines.
Why These Fittings Outperform Solder In Some Jobs
Compression and push-fit copper fittings eliminate the need for a torch, flux, and open flame. This lowers fire risk in occupied buildings and speeds up retrofit work. They save time on emergency repairs and in situations with limited clearance.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Always check ratings before using quick-connect fittings on hot-water or high-pressure lines. Used correctly, these fittings can be a safe, flexible alternative to soldering in many plumbing jobs.
Sweat And Soldered Copper Connections
Sweat connections use flux and filler metal to create a strong bond between the pipe and fitting. By contrast, brazing uses higher heat and a filler metal that melts above 840°F. It’s commonly used in refrigeration and HVAC joints. Both approaches can create long-lasting, durable joints when performed correctly.
Overview Of Techniques
Sweat copper fittings use solder to fill the gap between copper tube and fitting. Brazing copper pipe uses a hotter flame and brazing rod and is ideal for joints exposed to higher pressure and temperature. The choice between these methods depends on the system’s requirements and local regulations.
Tools And Safety Gear
Important tools include a tube cutter, deburring tool, wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is commonly used for soldering, while brazing is better handled with MAPP or acetylene. Always wear safety shoes, an apron, heat-resistant gloves, a respirator or face mask, and protective goggles.
Soldering Tips Step by Step
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Clean the fitting and pipe with a wire brush or emery cloth until bright copper shows.
- Apply flux to the cleaned surfaces, assemble the joint, and twist it slightly to spread the flux evenly.
- Use an enveloping flame to heat the fitting evenly, and when brazing copper pipe, watch for a faint red tint as heat increases.
- Feed solder or brazing rod at the joint; allow capillary action to draw filler around the seam.
- Let the joint cool naturally, then remove soot and flux residue with an appropriate cleaner.
When To Choose Soldered Fittings
Opt for copper solder fittings for a permanent, reliable joint in potable water systems and moderate temperatures. For HVAC or refrigeration systems needing higher temperature resistance, brazing is usually the better choice. Ensure that work on 5/8 copper tubing or copper tube 5/8 sized lines follows manufacturer and code requirements for pressure compatibility.
Practical Considerations
Skilled technique is essential to avoid cold joints and porosity. Each joint should be checked for complete solder coverage, and the system should be pressure-tested before concealment or insulation. Sweat copper fittings are a staple for many plumbing jobs, while brazing copper pipe is ideal for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings For Refrigeration And HVAC
HVAC and refrigeration systems require precise fittings and tubing to move refrigerant safely. Technicians choose materials and connection types based on pressure, service access, and code requirements. A good understanding of common fitting styles and sizes helps avoid leaks and maintenance headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. Always confirm whether the specification refers to nominal size or outside diameter (OD) before ordering parts.
5 8 copper tube needs to match fittings that are sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
5/8 Copper Pipe And 5/8 Refrigeration Tubing Applications
Refrigerant-carrying lines require precise bends and consistent wall thickness. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. Service valves, filter driers, and meters are often designed around the 5/8 OD copper tubing size.
Flare, Bite-Type, And Brazed Fittings Used On High-Pressure Refrigerant Lines
Flare fittings create a seal by compressing a flared tube end beneath a flare nut. Technicians prefer flare fittings where serviceability is important, such as around gauges and access panels. Flare joints are convenient in the field because they can be hand-tightened.
Bite-type fittings use a ferrule that bites into the tube wall when tightened. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. These fittings offer quick assembly and good vibration resistance for mobile applications.
Brazed fittings form metallurgical joints that are strong and leak-resistant. HVAC systems operating at high pressures or elevated temperatures often need brazed connections. Codes and manufacturers may mandate brazing for specific refrigerants and high-pressure circuits.
Sizing Notes For 5 8 Copper OD, ID, And Compatible Fittings
Be sure to confirm the difference between 5/8 od copper tubing and 5/8 id pipe before purchasing fittings. A 5/8 id pipe will have a smaller OD than tubing marked 5/8 OD. Verifying both OD and ID helps avoid fitting mismatches and the leaks that may follow.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Less common for refrigerant lines, more common in plumbing |
| Compatible Fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to ID-based plumbing standards |
| Installation Note | Verify flare nut size and ferrule type before flaring or tightening | Measure the OD when adapting to HVAC components to ensure proper fit |
| Pressure Suitability | High-pressure refrigerant circuits with correct wall thickness | Varies by pipe class; often lower than refrigeration-rated tubing |
When choosing parts, match the tubing OD to the fitting spec and select copper pipe fittings refrigeration products that list compatibility with 5/8 od copper tubing. For field repairs, it is wise to keep flare fittings and bite-type fittings on hand. Use brazed fittings wherever system pressure or code requirements call for permanent, high-strength joints.
How To Choose The Right Copper Fitting: Material, Sizing, And Code Requirements
To choose the right copper fitting, you need accurate measurements and a clear understanding of performance ratings. It’s essential to read labels carefully to determine if they use outside diameter or nominal sizing. That step is critical if you want to avoid leaks and make sure the fitting matches the system.
Many refrigeration and HVAC parts are sized by outside diameter. As an example, 5 8 copper pipe od is often used in refrigeration tubing. By contrast, residential plumbing often uses nominal sizing based on internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
As you match fittings to pipe, confirm whether the tubing is described as 5 8 id tube or 5 8 od tubing. Different fittings like compression, sweat, flare, and brazed require specific clearances and preparation. Select the fitting method that aligns with the application and pressure level.
Material choice and joint type are determined by system pressure and temperature. Soldered or press fittings rated for higher temperatures are recommended for hot potable water. For high-pressure refrigerant lines, flare or brazed joints are often the better choice. Brass adapters are ideal for transitioning between copper and other metals.
Local plumbing codes also play a significant role. Before starting work, inspect local plumbing codes copper fittings requirements. In some areas, brazed joints are required for HVAC refrigerant work, or mechanical fittings may be restricted in concealed spaces. NSF/ANSI or UPC certifications should be verified to meet code and warranty requirements.
To select the best copper fittings, purchase from trusted suppliers like Ferguson or Grainger and follow product instructions carefully. If you are unsure, consult a licensed plumber or HVAC technician to verify fit and rating. This approach helps avoid costly rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing | 5 8 copper pipe od | High-pressure refrigerant lines | Fittings are usually sized by OD; use flare or brazed joints |
| Water-supply tubing | 5/8 in copper pipe sizing, nominal | Residential water supply | Check whether the label refers to ID or nominal size |
| Compression fittings | Often marked by tube OD or nominal ID | Quick repairs, retrofit work | Good for low-to-moderate pressure; follow torque specs |
| Sweat/soldered fittings | Usually listed by nominal size | Hot water, durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fitting type | 5 8 id tube or 5 8 OD in certain specifications | Fuel lines and refrigeration lines | Do not mix flare and compression fittings unless they are rated for both |
| Required certifications | NSF/ANSI, UPC | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
Use a detailed checklist: confirm sizing, select fittings for the correct temperature and pressure, verify certifications, and ensure proper installation. This approach helps you select copper fittings that perform well and comply with local regulations.
Copper Fittings: Installation Tips, Common Mistakes, And Maintenance
Preparation is key to avoiding failures. Leaks and rework can be greatly reduced by following basic copper-fitting installation tips. The way the system is assembled plays a major role in its long-term performance. This is true whether you’re working with a 5/8 od copper tube for HVAC lines or standard supply piping in a home.
Cutting, Deburring, And Cleaning Before Assembly
Begin with a proper tube cutter so you get a square cut. After cutting, it’s essential to remove burrs and copper shavings from the pipe ID and end. Clean the inner surface of fittings and the outer pipe end with a wire brush or emery cloth. This step is necessary for even flux and solder flow. Without proper prep, capillary action is compromised, leading to leaks.
Proper Use Of Flux, Heat, And Solder; Avoiding Cold Joints And Leaks
Before assembling the joint, apply flux evenly to both mating surfaces. Then, heat the fitting. When soldering copper pipe, keep the flame moving so heat is distributed evenly. Apply solder to the heated seam so capillary action can draw it in. Avoid overheating, since it can burn off flux and weaken the joint, and avoid underheating, which creates leaking cold joints.
Teflon tape, thread sealants for threaded copper fittings, and avoiding overtightening
Male threads on threaded copper fittings should receive Teflon tape or a compatible pipe thread sealant. The tape should be wrapped clockwise so it stays in place as the fitting is threaded. Never overtighten, as excessive torque can strip threads or crack fittings. For compression fittings, follow the manufacturer’s torque or turn count to avoid crushing ferrules.
Routine inspection, leak prevention, and when to replace fittings
Regularly inspect copper fittings for signs of corrosion, pinhole leaks, and mechanical damage. Correct assembly is the first step in leak prevention, but periodic checks are also necessary. Fittings should be replaced when leaks continue after tightening, when corrosion is visible, or when a system is upgraded to current standards.
Frequent mistakes include poor cutting, skipped deburring and cleaning, confusion between OD and ID sizing, overheating while soldering, and ignoring manufacturer pressure limits. To maintain reliable systems, always keep spare parts from trusted suppliers like Mueller Industries or Viega and follow product instructions.
Final Thoughts
Copper pipe fittings stand out in plumbing and HVAC due to their durability, heat tolerance, and long lifespan. Whether you choose soldered joints, compression fittings, push-to-connect fittings, flare connections, or brazed assemblies depends on the details of the job. It is critical to match both the size and type of fitting correctly. Be mindful of OD versus ID sizes, like 5/8, to avoid errors.
As you select copper fittings, make sure they satisfy local codes, pressure ratings, and material standards. If you need quality products and reliable support, use a trusted wholesale distributor like Installation Parts Supply. They offer compatibility charts and certification details to guide your selection for any plumbing project.
Effective preparation and installation are key to a lasting system. Begin by cutting, deburring, and cleaning pipe ends. Then, follow the recommended methods for fluxing, heating, or mechanical assembly. Routine inspections and timely replacement of worn fittings are important for keeping the system safe and leak-free.
